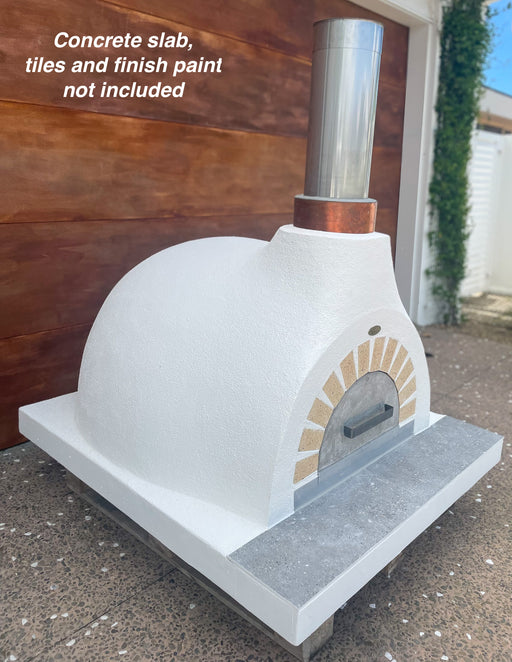

Concrete Base Slab Sizing (plinth or hearth to build the oven on)

Getting the size of the concrete slab that the oven sits on correct is a very important part of the project.

Attached are links to demonstrate the finished oven sizes on two different sized slabs.  One demonstrates the minimum slab size and the other demonstrates the oven sizing allowing for a small front landing.  You can of course adjust the size of the slab to your personal preferences.  These are just examples to start you off.

The front landing provides a small working space directly in front of the oven and helps catch any fire particles which may come out of the oven. It also adds to the aesthetics of the oven and allows you to add some personal flare!

600mm ID oven on 900mm x 1000mm concrete slab

600mm ID oven on 1000mm x 1200mm concrete slab

800mm ID oven on 1100mm x 1200mm concrete slab

800mm ID oven on 1200mm x 1400mm concrete slab

950mm ID oven on 1300mm x 1400mm concrete slab

950mm ID oven on 1400mm x 1600mm concrete slab
