800mm Pizza Oven Building Kit - Primal 800 Pack

This kit includes everything you need to build an 800mm dome diameter pizza oven once you have built the concrete slab (hearth) for it to sit on. It will take you from the base insulation to outer waterproofing and shapping plaster.  You just need to paint it up the colour you want.

This kit will build you a top quality oven you will be proud of and use for many years.

Click here to watch a summary of construction video (note kits are being supplied with different sized base insulation boards from the video - same grade and thickness just a different layout thats easier to work with).

Click here to see a video on choosing the right sized oven.

For freight rates to collect from a Mainfreight depts around NZ click here

To look at suitable hearth (concrete slab sizes) click here

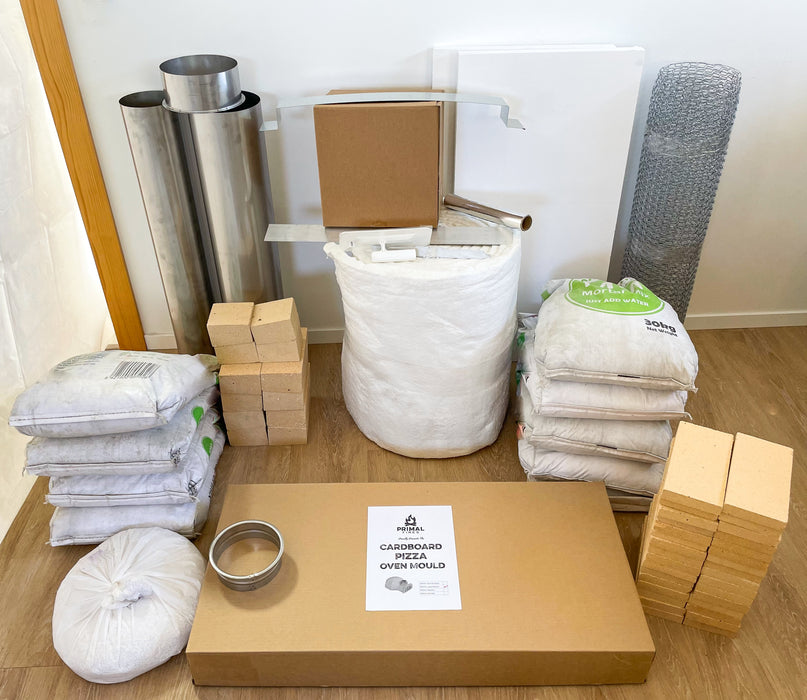

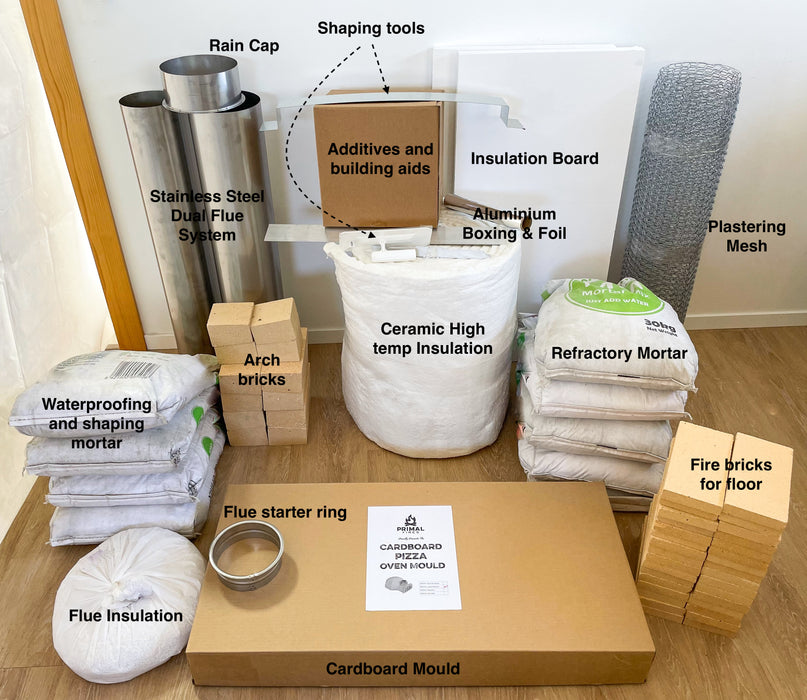

Kit includes;

• Calcium silicate base insulation boards
• Dense refractory bricks for the floor + cutting blade
• 800mm dome diameter cardboard mould (assembly required)
• Refractory grade arch bricks - 8 full and 4 half - no cutting required
• Flue entry mould plus stainless steel flue starter ring
• 150Kg of refractory high temperature mortar
• Ceramic insulation blanket for the dome (enough for two layers of 25mm)
• 150mm x 900mm stainless steel flue
• 200mm x900mm stainless flue (for dual flue system)
• Galvanised steel rain cap
• Insulation for between flues
• Aluminium foil
• Heavy duty plastering mesh
• 130kg of waterproof mortar for building and shaping
• Curvinator 3000 - custom made plaster dome shaping tool
• Artists plastic trowel for creating curves and shaping
• Plus many other additives and building aids.
• Full instructions for building the oven using these components.
• Access to detailed online building tutorials - Approximately 200 minutes of video broken down into different sections for different days.  Watch a segment then complete that section of the build.

The main differences between this pack and the Premium Primal Pack is that it doesn't have a door kit, the three layer plastering system, decorative flue ring or priming paint. There is only one coat of mortar placed over the insulation as opposed to four so the finish wont be quite as good (compared to using the additional three layer plaster system).  It also has one less bag of refractory mortar for the inner dome (so a little less thermal mass).

We are sure you will be impressed by the quality, design and thought that has gone into these kits. The detail in these kits makes it easier to achieve a great looking oven that performs.

To add a copper or stainless decorative ring around the flue please purchase separately from the shop.  These really add some class to the look of the oven.

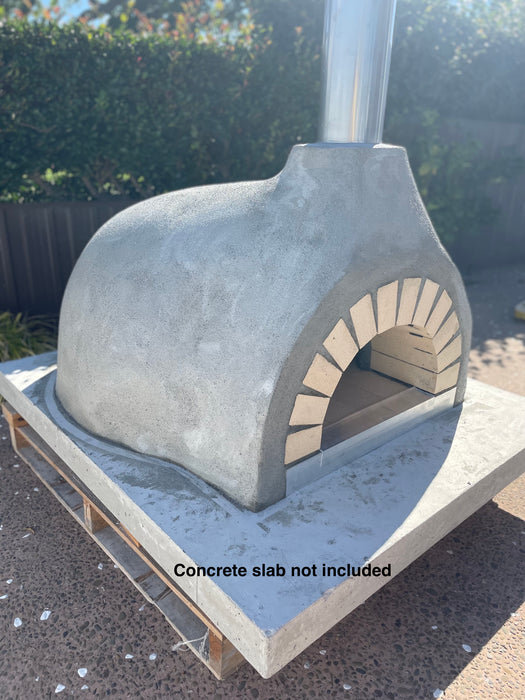

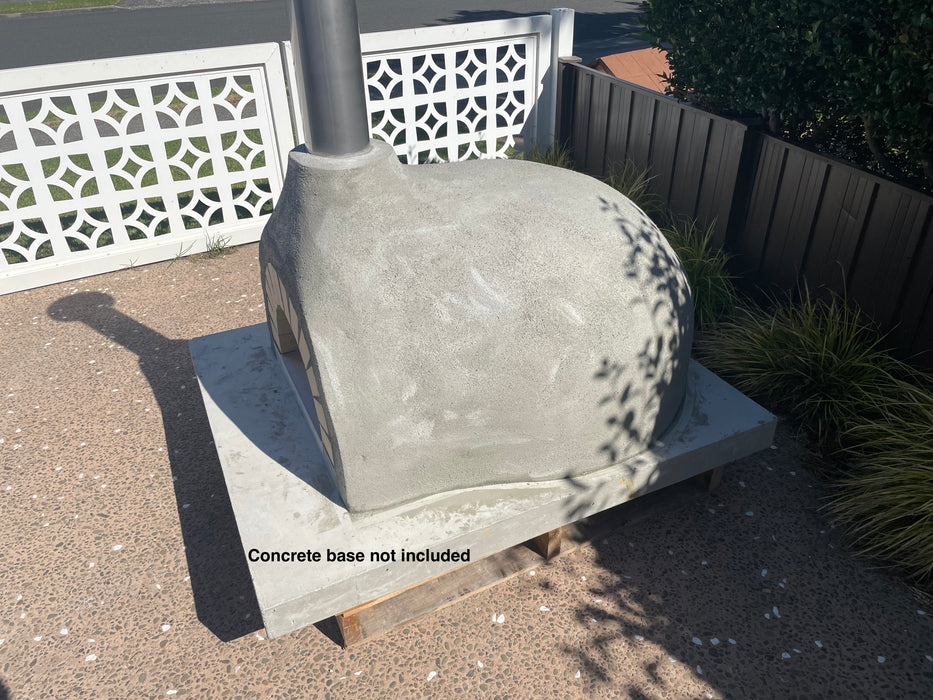

Note: This is designed for outdoor residential use only and MUST to be constructed on a concrete slab.

In the shop the freight will be calculated to a local Mainfreight depot for you to collect.  Just pick the one closest to you.  It is quite expense to get them delivered to an urban residential address but we are happy to quote for it so please email us on info@primalfires.co.nz

Sorry we cannot ship to rural addresses.  The cost is too prohibitive as the delivery trucks will charge by the km.

It takes 2-3 days to put these kits together as there are a number of components. Once you purchase the kit we will be in touch update you on delivery times.
